Description

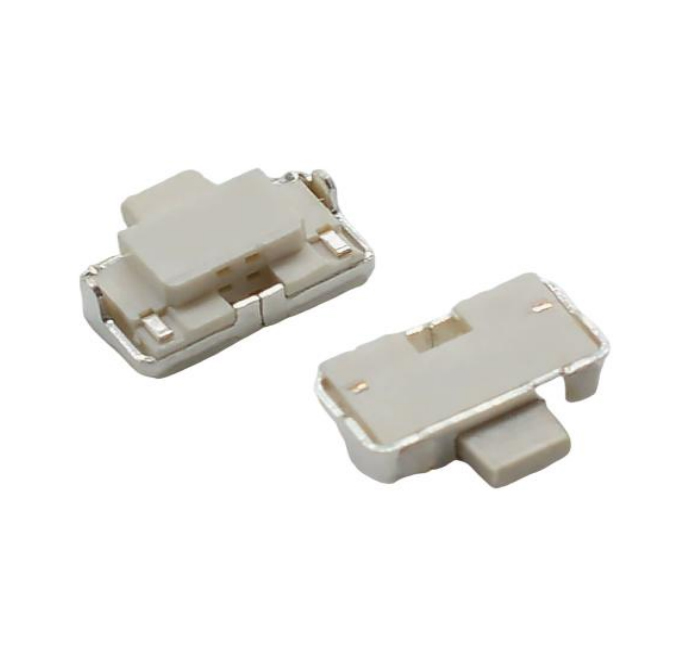

TS-1121C series is compact size tactile switch designed for high-end consumer and medical devices. There is a need to get smaller and reliable switches for designs that has limited PCB space. TS-1121C is an important addition to the portfolio. The switch is ideal for applications such as sports watch, hearing aids, as well as the latest IoT portable device.

Features & Benefits

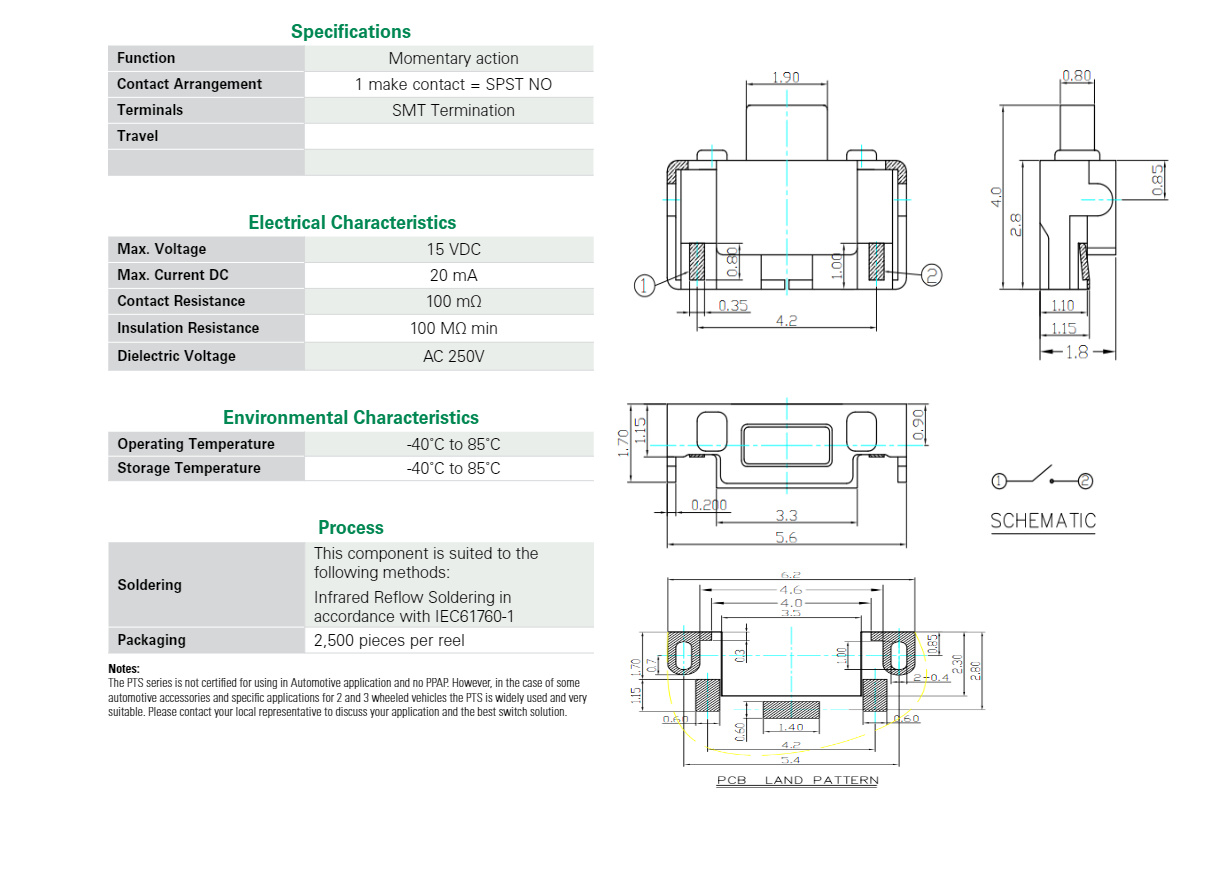

■ 5.6x 1.8 x 4.0 mm package

■ Hard & soft actuator options

■ Height 0.6 mm above PCB (edge mount)

■ 160 & 260 gf versions

■ Side actuation

■ Lifecycles 100K

■ SMT termination with or without L-shape shield

Applications

■ Mobile headphone/ Headset

■ Health monitoring

■ Sports watch

■ Black box

■ Bluetooth accessory
